An adder is a digital circuit that performs addition of numbers.In many computers and other kinds of processors adders are used in the arithmetic logic units or ALU. They are also used in other parts of the processor, where they are used to calculate addresses, table indices, increment and decrement operators, and similar operations.

Although adders can be constructed for many number representations, such as binary-coded decimal or excess-3, the most common adders operate on binary numbers.In cases where two's complement or ones' complement is being used to represent negative numbers, it is trivial to modify an adder into an adder–subtractor.Other signed number representations require more logic around the basic adder.

From the above truth-table, the full adder logic can be implemented. We can see that the output S is an EXOR between the input A and the half-adder SUM output with B and CIN inputs. We must also note that the COUT will only be true if any of the two inputs out of the three are HIGH. Figure 4-1 Serial Adder with Accumulator. Serial Adder. S 1 S 2 S 0 S 3 0/0 N/Sh 1/1 –/1. State Figure 4-2 Control State Graph and Table for Serial Adder. Example 0: A serial adder receives two operands and as two sequences of bits and adds them one bit at a time to generate the sequence of bits of the sum as the output. Implement this serial adder as a finite state machine. To simplify the logic for each of the functions, the truth table (with all the minterms) can be converted. With the help of half adder, we can design circuits that are capable of performing simple addition with the help of logic gates. Let us first take a look at the addition of single bits. Here the output ‘1’of ‘10’ becomes the carry-out. The result is shown in a truth-table below.

  • 1Binary adders
    • 1.3Adders supporting multiple bits

4 Bit Adder Truth Table

Binary adders[edit]

Half adder[edit]

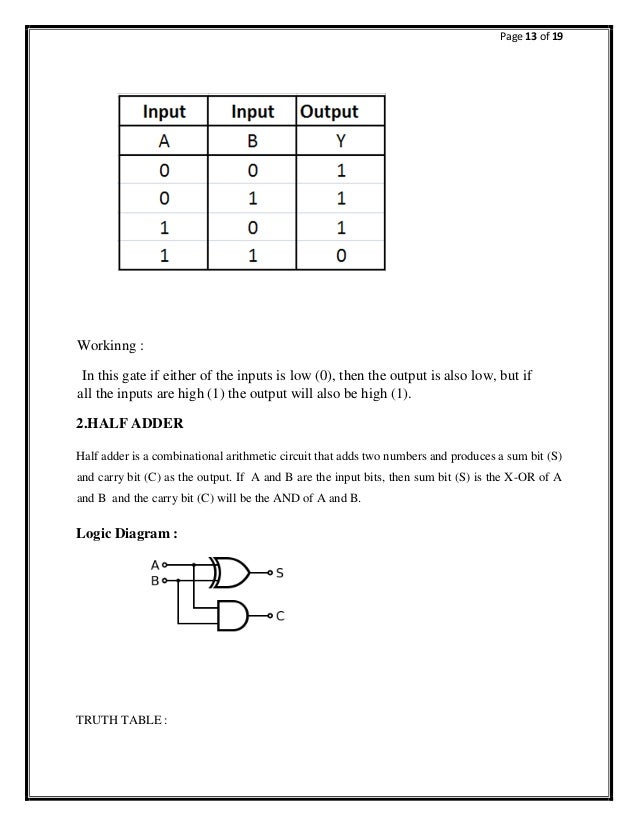

Half adder logic diagram
Half adder in action

The half adder adds two single binary digits A and B. It has two outputs, sum (S) and carry (C). The carry signal represents an overflow into the next digit of a multi-digit addition. The value of the sum is 2C + S. The simplest half-adder design, pictured on the right, incorporates an XOR gate for S and an AND gate for C. The Boolean logic for the sum (in this case S) will be A′B + AB′ whereas for the carry (C) will be AB. With the addition of an OR gate to combine their carry outputs, two half adders can be combined to make a full adder.[1] The half adder adds two input bits and generates a carry and sum, which are the two outputs of a half adder. The input variables of a half adder are called the augend and addend bits. The output variables are the sum and carry. The truth table for the half adder is:

InputsOutputs
ABCS
0000
1001
0101
1110
Half adder using NAND gates only.

Full adder[edit]

Logic diagram for a full adder.
Full adder in action. A full adder gives the number of 1s in the input in binary representation.
Schematic symbol for a 1-bit full adder with Cin and Cout drawn on sides of block to emphasize their use in a multi-bit adder

A full adder adds binary numbers and accounts for values carried in as well as out. A one-bit full-adder adds three one-bit numbers, often written as A, B, and Cin; A and B are the operands, and Cin is a bit carried in from the previous less-significant stage.[2] The full adder is usually a component in a cascade of adders, which add 8, 16, 32, etc. bit binary numbers. The circuit produces a two-bit output. Output carry and sum typically represented by the signals Cout and S, where the sum equals 2Cout + S.

A full adder can be implemented in many different ways such as with a custom transistor-level circuit or composed of other gates. One example implementation is with S = ABCin and Cout = (AB) + (Cin ⋅ (AB)).

How to install unistrut channel. Different kinds of fittings can make up many different combinations 4. To make construction easier and more convenient, saving time and labor cost 2. W H L T 41mm 21mm 150mm-500mm 1.5mm 2.0mm 2.5mm 2.7mm 41mm (double) 21mm 150mm-500mm 1.5mm 2.0mm 2.5mm 2.7mm 41mm 41mm 150mm-1000mm 1.5mm 2.0mm 2.5mm 2.7mm 41mm(double) 41mm 150mm-1000mm 1.5mm 2.0mm 2.5mm 2.7mm 41mm 21mm 150mm-500mm 1.5mm 2.0mm 2.5mm 2.7mm 41mm 41mm 150mm-600mm 1.5mm 2.0mm 2.5mm 2.7mm Advangtages of Bracket 1. Manufacture special size and shape steel products according to customers’ drawings 3.

In this implementation, the final OR gate before the carry-out output may be replaced by an XOR gate without altering the resulting logic. Using only two types of gates is convenient if the circuit is being implemented using simple integrated circuit chips which contain only one gate type per chip.

NOR Full adder

A full adder can also be constructed from two half adders by connecting A and B to the input of one half adder, then taking its sum-output S as one of the inputs to the second half adder and Cin as its other input, and finally the carry outputs from the two half-adders are connected to an OR gate. The sum-output from the second half adder is the final sum output (S) of the full adder and the output from the OR gate is the final carry output (Cout). The critical path of a full adder runs through both XOR gates and ends at the sum bit s. Assumed that an XOR gate takes 1 delays to complete, the delay imposed by the critical path of a full adder is equal to

TFA=2TXOR=2D.{displaystyle T_{text{FA}}=2cdot T_{text{XOR}}=2D.}

The critical path of a carry runs through one XOR gate in adder and through 2 gates (AND and OR) in carry-block and therefore, if AND or OR gates take 1 delay to complete, has a delay of

Tc=TXOR+TAND+TOR=D+D+D=3D.{displaystyle T_{text{c}}=T_{text{XOR}}+T_{text{AND}}+T_{text{OR}}=D+D+D=3D.}

The truth table for the full adder is:

InputsOutputs
ABCinCoutS
00000
00101
01001
01110
10001
10110
11010
11111
Serial adder truth table

Adders supporting multiple bits[edit]

Ripple-carry adder[edit]

4-bit adder with logical block diagram shown
Decimal 4-digit ripple carry adder. FA = full adder, HA = half adder.

It is possible to create a logical circuit using multiple full adders to add N-bit numbers. Each full adder inputs a Cin, which is the Cout of the previous adder. This kind of adder is called a ripple-carry adder (RCA), since each carry bit 'ripples' to the next full adder. Note that the first (and only the first) full adder may be replaced by a half adder (under the assumption that Cin = 0).

The layout of a ripple-carry adder is simple, which allows fast design time; however, the ripple-carry adder is relatively slow, since each full adder must wait for the carry bit to be calculated from the previous full adder. The gate delay can easily be calculated by inspection of the full adder circuit. Each full adder requires three levels of logic. In a 32-bit ripple-carry adder, there are 32 full adders, so the critical path (worst case) delay is 3 (from input to carry in first adder) + 31 × 2 (for carry propagation in latter adders) = 65 gate delays.[3]The general equation for the worst-case delay for a n-bit carry-ripple adder, accounting for both the sum and carry bits, is

TCRA(n)=THA+(n1)Tc+Ts=TFA+(n1)Tc=3D+(n1)2D=(2n+1)D.{displaystyle T_{text{CRA}}(n)=T_{text{HA}}+(n-1)cdot T_{text{c}}+T_{text{s}}=T_{text{FA}}+(n-1)cdot T_{c}=3D+(n-1)cdot 2D=(2n+1)cdot D.}

A design with alternating carry polarities and optimized AND-OR-Invert gates can be about twice as fast.[4]

4-bit adder with carry lookahead

Carry-lookahead adder[edit]

To reduce the computation time, engineers devised faster ways to add two binary numbers by using carry-lookahead adders (CLA). They work by creating two signals (P and G) for each bit position, based on whether a carry is propagated through from a less significant bit position (at least one input is a 1), generated in that bit position (both inputs are 1), or killed in that bit position (both inputs are 0). In most cases, P is simply the sum output of a half adder and G is the carry output of the same adder. After P and G are generated, the carries for every bit position are created. Some advanced carry-lookahead architectures are the Manchester carry chain, Brent–Kung adder (BKA),[5] and the Kogge–Stone adder (KSA).[6][7]

Some other multi-bit adder architectures break the adder into blocks. It is possible to vary the length of these blocks based on the propagation delay of the circuits to optimize computation time. These block based adders include the carry-skip (or carry-bypass) adder which will determine P and G values for each block rather than each bit, and the carry-select adder which pre-generates the sum and carry values for either possible carry input (0 or 1) to the block, using multiplexers to select the appropriate result when the carry bit is known.

A 64-bit adder

By combining multiple carry-lookahead adders, even larger adders can be created. This can be used at multiple levels to make even larger adders. For example, the following adder is a 64-bit adder that uses four 16-bit CLAs with two levels of LCUs.

Other adder designs include the carry-select adder, conditional sum adder, carry-skip adder, and carry-complete adder.

Carry-save adders[edit]

If an adding circuit is to compute the sum of three or more numbers, it can be advantageous to not propagate the carry result. Instead, three-input adders are used, generating two results: a sum and a carry. The sum and the carry may be fed into two inputs of the subsequent 3-number adder without having to wait for propagation of a carry signal. After all stages of addition, however, a conventional adder (such as the ripple-carry or the lookahead) must be used to combine the final sum and carry results.

3:2 compressors[edit]

A full adder can be viewed as a 3:2 lossy compressor: it sums three one-bit inputs and returns the result as a single two-bit number; that is, it maps 8 input values to 4 output values. Thus, for example, a binary input of 101 results in an output of 1 + 0 + 1 = 10 (decimal number 2). The carry-out represents bit one of the result, while the sum represents bit zero. Likewise, a half adder can be used as a 2:2 lossy compressor, compressing four possible inputs into three possible outputs.

Such compressors can be used to speed up the summation of three or more addends. If the addends are exactly three, the layout is known as the carry-save adder. If the addends are four or more, more than one layer of compressors is necessary, and there are various possible design for the circuit: the most common are Dadda and Wallace trees. This kind of circuit is most notably used in multipliers, which is why these circuits are also known as Dadda and Wallace multipliers.
